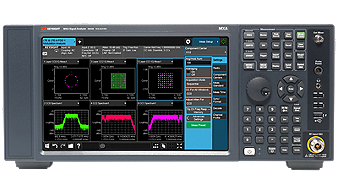

Keysight N9030B-526 PXA Signal Analyzer / Multi-touch / up to 50GHz – Frequency range, 3 Hz to 26.5 GHz 信號分析儀

Key Features
Keysight N9030B 2Hz to 50GHz multi-touch PXA signal analyzer.
Specifications and Key Features
- Simplify application-specific testing with X-Series apps
- Extend frequency up to 110 GHz with Keysight smart mixers
- Perform deeper troubleshooting with the 89600 VSA software
- Capture transient or intermittent signals with real-time spectrum analysis
- Accelerate innovation in demanding applications with measurement options that range from excellent to exceptional
Keysight E5052B Signal Source Analyzer / 10 MHz to 7 GHz 信號源分析儀

Key Features
Keysight E5052B 7GHz signal source analyzer.
Specifications and Key Features
Analysis capabilities
- Clock jitter measurement with femto-second resolution
- Capture of unexpected frequency change with video trigger function
- Simultaneous transient measurements for frequency, phase and power over time
- Complete VCO characterization with outstanding low-noise DC sources(frequency/power/DC-supply-current over Vc and Vs)
Noise measurement functions
- Baseband noise measurement from 1 Hz to 100 MHz
- Spectrum monitoring up to 15 MHz span in a real-time mode
- Phase noise with ultra low noise floor and a cross-correlation method
- AM noise measurement and phase noise measurement without changing RF connection
Frequency range
- RF Input frequency range: 10 MHz to 110 GHz
- Analysis offset frequency range: 1 Hz to 100 MHz
- Phase noise measurement with ultra low noise floor and a cross-correlation method
- Frequency transient capture range: up to 80 MHz in narrow band, up to 4.8 GHz in wide band
N9040B UXA 信號分析儀,多點觸控,2 Hz 至 50 GHz

主要特色與功能
- 以更寬(高達 1 GHz)、更深的視野觀測複雜信號,可看到設計的真正效能
- 憑藉超低的相位雜訊以及在 510 MHz 頻寬上高達 78 dBc 的無突波動態範圍,可量測設計的頻譜純度
- 透過是德科技智慧混頻器,可將射頻輸入頻率擴展到 110 GHz,使用協力廠商解決方案可擴展到 THz 級
- 透過無間隙的即時頻譜分析,擷取間歇性信號
- 透過改進的 DANL 低雜訊路徑,可擷取低位準突波信號
