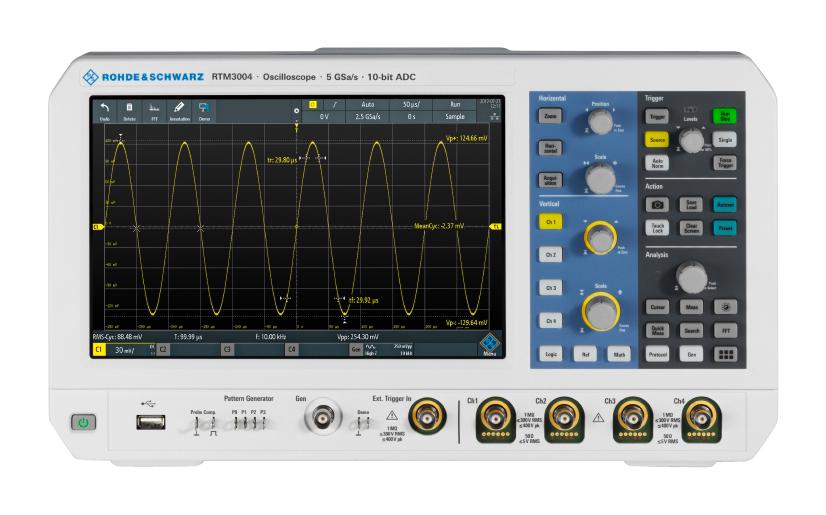

R&S 羅德史瓦茲 示波器 RTM 3004 Digital Oscilloscope (USED)
☞ 歡迎來電詢價 ☎ 06-2995705
R&S 羅德史瓦茲 示波器 RTM 3004 Digital Oscilloscope (二手)
▶ 機型概要:
R&S RTM3000系列，結合了同等級示波器前所未有的10 位元的類比/數位轉換器以及80 MSample的記憶深度，無論是應用在研究、開發階段的除錯或是產線、維修部門的應用，RTM都將帶給您十全十美的操作體驗。
R&S RTM3000系列除提供更長的記憶深度，更大幅降低量測的雜訊，且針對電力分析的需求，提供R&S RTM-K31（Power Analysis）選項，讓您更快速的進行量測與驗證。
▶ 功能與特色:
1/ R&S RTM3000系列包含2通道與4通道機型，並均有100 MHz、200 MHz、350 MHz、500 MHz與1 GHz的頻寬可供選擇。日後更可透過序號直接進行升級，無須送回原廠。
2/ 10.1 吋電容式觸控螢幕，解析度高達1280 x 800，除支援智慧型手機的手勢操作功能，更能讓您自訂畫面上的快速功能鍵。
3/ 高達10位元的訊號解析度，搭配500 μV/div的顯示刻度，提供您更完整的訊號細節。
4/ 超越同級儀器8倍以上的記憶深度，每通道可達40 MSample，交錯式使用時更可高達80 MSample。
選購R&S RTM-K15（History and Segmented Memory）可將記憶體擴展至400 MSample。
5/ 量測速度高達2.5 GSample/s；交錯式使用時可達5 GSample/s。
6/ 標準儀控功能。
7/ 頻率分析儀功能（需搭配R&S RTM-K18）。
▶ RTM3004:
– 頻寬: 100Hz
– 通道:4 通道
– 取樣率:5GSa/s
– 記憶深度:80M Sa
– 波形更新率:64000次/s
– 垂直解析度:10 bit
-10吋觸控式面板
R&S羅德史瓦茲 RTO1022數字示波器 2GHz (USED)
☞ 歡迎來電詢價 ☎ 06-2995705
R&S羅德史瓦茲 RTO1022數字示波器 2GHz (二手)
▶ 特色:
- Bandwidth: 2 GHz
- 2 Channels
- Sample Rate: 10 GS/s
- Memory depth: 40 Msample
- High dynamic range due to single-core A/D converter
- Wide selection of measurement functions: over 90 automated measurements
- High-resolution touchscreen for ease of use
- Color coding for clear overview
- Always-on “history mode” lets you see previous triggers
- Update Rate: 1,000,000 wfms/sec helps find elusive faults fast
- Low noise, high dynamic range
- Exclusive digital trigger system provides highly accurate triggering
- Hardware-based mask testing and mask triggering
- Serial protocols: Hardware-based triggering and decoding
- EMI debugging with hardware accelerated spectrum analysis
- Windows 7 OS
- LAN and USB Standard
R&S 羅德史瓦茲 示波器 RTB 2004 Digital Oscilloscope (USED)
☞ 歡迎來電詢價 ☎ 06-2995705
R&S 羅德史瓦茲 示波器 RTB 2004 Digital Oscilloscope (二手)
▶ 機型概要:
R&S® RTB2000一機多用，相當於示波器外加邏輯和協議分析儀、波形和邏輯訊號產生器以及數位電錶。R&S® RTB2000還整合了針對頻譜分析、遮罩測試和長數據擷取的專用操作模式。輕鬆有效地整合所有類型的電子系統，並以極具吸引力的價格成為您首選的量測儀器。輕巧的設計可以節省寶貴的實驗室工作台空間。
▶ 特色:
1/ 70 MHz至300 MHz
2/ 10位元類比數位轉換器
3/ 10 Msample擷取記憶體
4/ 10.1″電容式觸控大螢幕
10.1英吋多點電容式觸控螢幕解析度在同類型別中最高(1280×800像素)，便於在快速選單中導航，且用戶可通過多點觸控功能輕鬆調整縮放比例或移動波形，和智慧型手機的操作一樣。
與傳統8位元類比數位轉換器相比，10位元類比數位轉換器產生的波形增加4倍。可實現絕佳的信號完整性。
當四通道同時測量訊號源時，則每個通道上的儲存深度都可達到10 Msample。採用雙通道時，儲存深度可達到20 Msample。比競爭對手的示波器高出10倍。通過擷取更長的訊號軌跡以獲取更多的分析結果。
R&S® RTB2000為用戶提供的不僅僅是一台示波器。它還包 括邏輯分析儀、協議分析儀、波形和邏輯訊號產生器以及數位電錶。同時整合適用於頻譜分析、遮罩測試和長數據擷取的專門操作模式。輕鬆有效地調試所有類型的電子系統，並以極具吸引力的價格成為您首選的量測儀器。
▶ RTB2004
– 頻寬: 70 MHz
– 通道: 4
– 取樣率: 2.5GSa/s
– 記憶深度: 20M Sa
– 波形更新率: 50000次/s
– 垂直解析度: 10 bit
– 10 吋觸控面板
R&S FSVA40 Signal and Spectrum Analyzer 信號與頻譜分析儀 (USED)
☞ 歡迎來電詢價 ☎ 06-2995705
R&S FSVA40 Signal and Spectrum Analyzer 信號與頻譜分析儀 (二手)
▶ 主要功能:
- Frequency range up to 4/7/13.6/30/40 GHz
- Up to 160 MHz signal analysis bandwidth
- Convenient, intuitive operation with touchscreen based user interface
- 0.4 dB level measurement uncertainty up to 7 GHz
- Low displayed average noise level (DANL) (e.g. typ. –168 dBm (1 Hz) for the R&S®FSVA)
- High third-order intercept (TOI) (e.g. typ. 20 dBm for the R&S®FSVA)
- Very low phase noise (e.g. typ. –118 dBc (1 Hz) at 1 GHz and 10 kHz offset for the R&S®FSVA)
- General-purpose measurement applications for phase noise, noise figure, vector signal analysis, analog demodulation, EMI diagnostics
- Wireless measurement applications for LTE (including LTE-Advanced), WLAN (including IEEE 802.11ac), WCDMA/HSPA+, TD-SCDMA, GSM/EDGE, CDMA2000®/1xEV-DO, Bluetooth®
- Frequency range up to 500 GHz with harmonics mixers
- Keeping test data confidential with removable solid state or hard disk drives
▶ 特色:
- Broadband signal analysis
- Wealth of functions and performance for effective use in labs
- Rich set of PC software completes the measurement option portfolio
R&S SMR40 羅德史瓦茲 信號產生器 SMR Signal Generator (USED)
☞ 歡迎來電詢價 ☎ 06-2995705
R&S SMR40 羅德史瓦茲 信號產生器 (二手)
▶ 功能與特色:
The R&S SMR40 Signal Generator is designed as CW generator with pulse modulation capability with frequency coverage from 1 GHz up to 40 GHz. The lower limit can be expanded to 10 MHz by the optional Frequency Extension 0.01 GHz to 1 GHz (option B11).
The SMR40 stands out from other generators for its excellent spectral purity. Advanced frequency synthesis with fractional-N divider makes for low SSB phase noise and high spurious suppression, both of which are for example prerequisites for reliable receiver measurements. Modern microwave filters in the output path of the instrument ensure excellent harmonics suppression. This is necessary to obtain conclusive results in scalar network analysis measurements.
Features and specifications of the Rohde & Schwarz SMR40 include:
- High Output Power: >+9 dBm (at 40 GHz)
- CW generator with pulse modulation capability (standard version)
- Signal generator with AM/FM and LF generator (option B5)
- Synthesized sweep generator with analog ramp sweep (option B4)
- Digital RF and level sweep (standard version)
- Analog ramp sweep (RF sweep, option B4)
- Max. sweep rate for ramp sweeps min. 600 MHz/ms (frequency >2 GHz)
- Digital sweep of LF generator (with option B5)
- 10 user-selectable frequency markers for RF sweep
- Operating modes: automatic, singleshot, manual, externally triggered
R&S ZNB20 Vector Network Analyzer 羅德史瓦茲 向量網路分析儀 (USED)
直接購買: https://www.ruten.com.tw/item/show?22134694264722
ZNB 系列特點:
– 1. Wide dynamic range from 9kHz for fast measurements on high-blocking DUTs
– 2. Excellent raw data for high basic accuracy
– 3. High temperature stability for long calibration intervals
– 4. Fast synthesizers for high measurement speed
– 5. Convenient characterization of active and passive RF components
– 6. Fast embedding/de-embedding for impedance matching using virtual networks
– 7. Mixed-mode S-parameters for balanced DUT characterization
– 8. Redefined S-parameters for flexible test setup configuration
– 9. Extensive analysis functions for effi cient trace analysis
-10. Amplifier measurements with wide power sweep range and receiver step attenuators
-11. Time domain analysis for distance-to-fault (DTF) measurements and filter adjustment
-12. Frequency-converting measurements on mixers and amplifiers fast and simple with two independent internal generators
ZNB20 特色:
– 頻率: 20GHz
R&S SMA100A Signal Generator 信號產生器 (USED)
直接購買：https://goods.ruten.com.tw/item/show?22025706697860
Key facts
- Frequency options from 9 kHz to 3 GHz/6 GHz
- Very low SSB phase noise of typ. -141 dBc (at 1 GHz, 20 kHz offset, 1 Hz measurement bandwidth) with option
- Nonharmonics <-96 dBc (f < 750 MHz, carrier offset > 10 kHz) with option
- High output power of up to +18 dBm (+28 dBm in overrange)
- Emulation of legacy instruments
- Electronic attenuator with built-in overvoltage protection over entire frequency range
R&S SMBV100B 信號產生器（5G測試開發用）(USED)
已安裝之選件： B103, KB106, B1, K144, K444, K520, K523, 若要安裝其他選件可另行加購
狀態：全新含原廠保固3年，下標前請私訊是否有現貨
價格：標示價格為未稅價規格：
羅德史瓦茲(Rohde & Schwarz；R&S)推出兩款新型精巧型中階訊號產生器，精巧的尺寸具備多樣化功能及高效能。R&S SMB100B類比射頻訊號產生器和R&S SMBV100B向量訊號產生器，提供出色的頻譜純淨度、前所未有的輸出功率以及簡單直觀的觸控摸螢幕操作，專門針對RF半導體開發、電信通訊和航太與國防的應用需求。
R&S推出的前一代R&S SMB100A 類比射頻訊號產生器和R&S SMBV100A 向量訊號產生器，建立了高達6GHz的桌上型訊號產生器產品系列，並將功能及效能整合到精巧尺寸中。R&S並持續不斷地改善其功能和設計，接著推出新一代機種。全新的兩款訊號產生器R&S SMB100B 和R&S SMBV100B再次奠定了中階產品的標準，其極低的相位雜訊提供出色的量測精確度，最大輸出功率更是前所未見。此外，這兩款精巧、輕便的訊號產生器不但便於運送，在實驗室中也不會佔用太多使用空間。
R&S新款訊號產生器可用於各種不同的配置，其頻率範圍從8kHz到1GHz、3GHz和6GHz，可針對不同的應用量身定制。客戶可以選擇三種不同的RF輸出功率等級，根據其特定需求調整最大輸出功率。R&S訊號產生器無須搭配外部放大器即可提供高達+34dBm的輸出功率(1GHz載波頻率)，簡化了測試設置並消除了因校正而造成停機。R&S SMB100B和R&S SMBV100B為所有配置提供精確的校準RF輸出功率。
R&S兩款新一代訊號產生器皆擁有優異的訊號品質，這一點使R&S SMB100B類比射頻訊號產生器非常適合航空、國防部門的雷達和接收機測試，及無線設備和基礎設施的生產測試。
R&S SMBV100B同時也為向量調變訊號提供了出色的訊號品質，擁有高達500MHz頻寬的強大基頻。其具備所有主要數位通訊標準選項，如5G、蜂巢式物聯網，LTE，WLAN IEEE 802.11a/b/g/n/ac/ax和藍牙5.0。這些數位標準的訊號可以直接由儀器產生，不須另外透過其他電腦，因此以快速輕鬆地改變訊號和參數。
R&S SMBV100B更提供封包追蹤和數位預失真(DPD)功能，頻寬高達2GHz的訊號可經由外部I/Q輸入進行調變。此外，內部產生的160MHz頻寬WLAN IEEE 802.11ac訊號可實現-49dB極低的EVM值。在500MHz 全頻寬內可獲得頻率響應為0.1dB (測量值) 的絕佳寬頻I/Q調變訊號。上述這些特點可協助研發人員確保5G等寬頻通訊系統產品的品質。
R&S SMB100B及R&S SMBV100B訊號產生器具有易於升級的設計概念，所須的功能大多可透過軟體鍵碼增加。例如，解變標準、輸出功率以及R&S SMBV100B向量模型，甚至射頻頻率範圍和調變頻寬均可視需求進行升級，客戶不須再將儀器送回R&S。這個過程非常簡單，可節省時間和金錢，並為客戶提供最大彈性。選擇R&S SMB100B和R&S SMBV100B訊號產生器是一項安全的投資，為滿足未來需求做好充分準備。
直接購買：https://goods.ruten.com.tw/item/show?22024661782493
出售羅德史瓦茲 Rohde & Schwarz ZNB8, 9kHz~8.5GHz網路分析儀
購買：https://goods.ruten.com.tw/item/show?21939048418289
The R&S ZNB8 from Rohde & Schwarz is a Vector Network Analyzer with Frequency 9 kHz to 8.5 GHz, Measurement Speed 4 ms, Dynamic Range typ. 122 dB to 140 dB, Output Power typ. 12 dBm to 15 dBm, Power Sweep Range 98 dB. Tags: VNA with Screen.
出售全新 Rohde & Schwarz ESR7 EMI Test Receiver, 9 kHz to 7 GHz (NEW)
全新未使用過, 含原廠保固3年。現貨可以直接出貨或面交
SN: 102178
Rohde & Schwarz ESR7
EMI Test Receiver, 9 kHz to 7 GHz
購買：https://goods.ruten.com.tw/item/show?21930208757420
Product Overview
The R&S ESR7 EMI Test Receiver is a dual instrument that measures electromagnetic disturbances while simultaneously functioning as a fully featured, powerful signal and spectrum analyzer for lab applications. Rapid-fire-speed measuring occurs by the instrument’s use of an FFT-based time domain scan and detailed analysis and history of disturbance signals is accomplished by realtime spectrum analysis using a wide variety of diagnostic tools. This robust and compact, dual instrument is user friendly with its straightforward display, intuitive touchscreen interface.
Features and Specifications of the R&S ESR7 EMI Test Receiver include:
- Features
- EMI test receiver and signal/spectrum analyzer combined in a single instrument
- Compliant with CISPR 16-1-1 Ed. 3.1
- Preselection with integrated 20 dB preamplifier
- Ultra-fast time domain scan in addition to conventional stepped frequency scan
- Realtime spectrum analysis with up to 40 MHz span for detailed investigation of disturbance signals
- Powerful measurement and analysis functions in frequency and time domain
- Time domain display with high resolution (50 μs)
- Automatic test routines
- Convenient operation, straightforward display
- Robust and compact – ideal for the mobile use
- Specifications
- Frequency
- Frequency Range: 9 kHz to 7 GHz
- Level
- Max RF level (CW):
- RF attenuation ≥ 10 dB; RF preamplifier off: 30 dBm (= 1 W)
- RF attenuation ≥ 10 dB; RF preamplifier on: 23 dBm (= 0.2 W)
- Max Pulse Voltage:
- RF attenuation ≥ 10 dB:
- Input 1: 150 V
- Input 2: 450 V
- RF attenuation ≥ 10 dB:
- Max Pulse Energy:
- RF attenuation ≥ 10 dB; 10 μs
- Input 1: 1 mWs
- Input 2: 20 mWs
- RF attenuation ≥ 10 dB; 10 μs
- 1 dB Compression:
- RF attenuation 0 dB; RF preamplifier and preselection off: +3 dBm, nominal
- Max RF level (CW):
- IF and Resolution Bandwiths
- Analyzer Mode (span ≥ 10 Hz) and Receiver Mode: 10 Hz to10 MHz (–3 dB) in 1/2/3/5/10 steps
- Analyzer and Receiver Mode: 200 Hz, 9 kHz, 120 kHz (–6 dB), 1 MHz (impulse bandwidth)
- Preselection:
- Can be switched off in analyzer mode: 16 Fixed Filters
- Preamplifier:
- Can be switched on/off: 1 kHz to 7 GHz, 20 dB gain, nominal
- Measurement Time:
- Analyzer Mode (Sweep Time):
- span = 0 Hz: 1 μs to 16 000 s
- span ≥ 10 Hz (swept): 1 ms to 16 000 s
- span ≥ 10 Hz (FFT): 7 μs to 16 000 s
- Receiver Mode (Stepped Frequency Scan): 50 μs to 100 s (per frequency)
- Receiver Mode (Time Domain Scan): 50 μs to 100 s (per frequency subrange)
- Analyzer Mode (Sweep Time):
- Frequency Step Size:
- Receiver Mode (Stepped Frequency Scan): min. 1 Hz
- Receiver Mode (Time Domain Scan): 0.25 × I
- Detectors
- Receiver Mode:
- maximum peak
- minimum peak
- quasi-peak
- RMS
- average
- average with meter time constant (CISPR average)
- RMS average (CISPR-RMS)
- Receiver Mode:
- Displayed Average Noise Level (DANL)
- Receiver Mode, Nominal, Average Detector (AV), RF Attenuation 0 dB, Termination 50 Ω:
- Preamplifier Off:
- 500 MHz, bandwidth 120 kHz: < 6 dBμV
- 3 GHz, bandwidth 1 MHz: < 17 dBμV
- Preamplifier On:
- 500 MHz, bandwidth 120 kHz: < –7 dBμV
- 3 GHz, bandwidth 1 MHz: < 5 dBμV
- Preamplifier Off:
- Receiver Mode, Nominal, Average Detector (AV), RF Attenuation 0 dB, Termination 50 Ω:
- Number of Sweep (Trace) Points
- Analyzer Mode (Standard): 101 to 32 001
- Analyzer Mode (EMI): 101 to 200 001
- Receiver Mode: Max 4 000 000
- Realtime Analyzer (Option): 801
- Total Measurement Uncertainty
- CW signal, level 0 dB to –70 dB below reference level, S/N > 20 dB, auto sweep time, RF attenuation 10 dB, 20 dB, 30 dB, 40 dB, preselection on,
span/RBW<100, 95% confidence level, +200C to +300C- 9 kHz ≤ f < 3.6 GHz: 0.46 dB
- 3.6 GHz ≤ f ≤ 7 GHz: 0.57 dB
- CW signal, level 0 dB to –70 dB below reference level, S/N > 20 dB, auto sweep time, RF attenuation 10 dB, 20 dB, 30 dB, 40 dB, preselection on,
- Frequency
